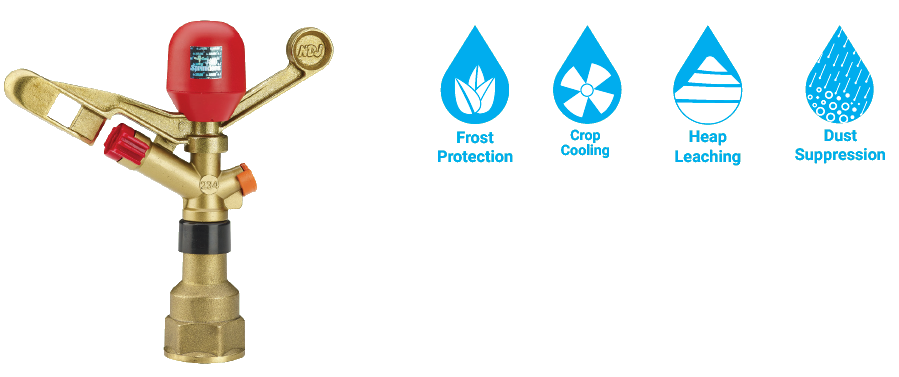

| 234 Sprinkler |
 |
Features and Specifications
- Red Cap For protection of SS Spring Completely closed plastic protection cap protects the spring from sand, frost gives longer life to sprinkler
- Innovative Swing Hammer Well balanced swing hammer ensures smooth and uniform rotation
- Hydrodynamically Designed Bayonet Nozzles Rigid Bayonet nozzles with hydrodynamically designed inner profile for precise jet and longer radius of throw
- Heavy Duty Retraction Spring with Spring Guide Stainless steel retraction spring maintains uniform rotation speed, spring guide ensures uniform performance of spring
- Stainless Steel Spindle, Fulcrum Pin Stainless steel spindle, fulcrum pin for improving life of sprinkler
- Equipped with Quality Washers. Special washers used to give uniform & hassle free rotation along with leakage prevention
- Discharge: 2210 to 4600 lph
- Wetted Radius: 16 to 21.5 m
- Operating Pressure: 3 to 5 Kg/cm²
- Inlet Connection: 1” Female Threaded
- Usability: Quick Connect Assembly
Applications

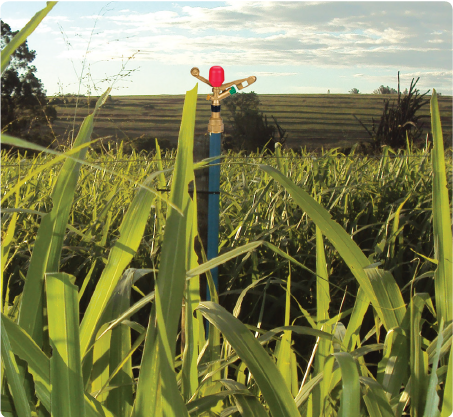

- Suitable for field crops like pulses, oil seeds, vegetables, sugarcane, cotton, cereals, tea, coffee and fodder crops.
|
|
|
