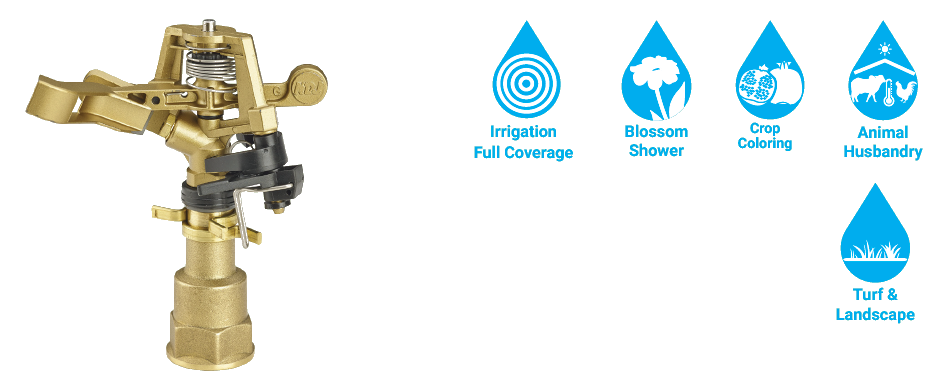

Features and Specifications
- Finger-Tip Adjustment User friendly, Stainless Steel fingertip adjustment to part circle mechanism
- Innovative Swing Hammer Well balanced swing hammer ensures smooth and uniform rotation
- Equipped with Quality Washers Special washers used to give uniform & hassle free rotation along with leakage prevention
- Special Design Retraction Spring Stainless steel retraction spring maintains uniform rotation speed
- Hydrodynamically Designed replaceable Nozzles Rigid replaceable nozzles with hydrodynamically designed inner profile for precise jet and longer radius of throw
- Threaded Inlet Connection 3/4” female threaded inlet connection for connectivity with system
- Discharge: 570 to 1180 lph
- Wetted Radius: 11.5 to 14 m
- Operating Pressure: 2 to 4 Kg/cm²
- Inlet Connection: 3/4” Female Threaded
- Usability: Quick Connect Assembly
Applications

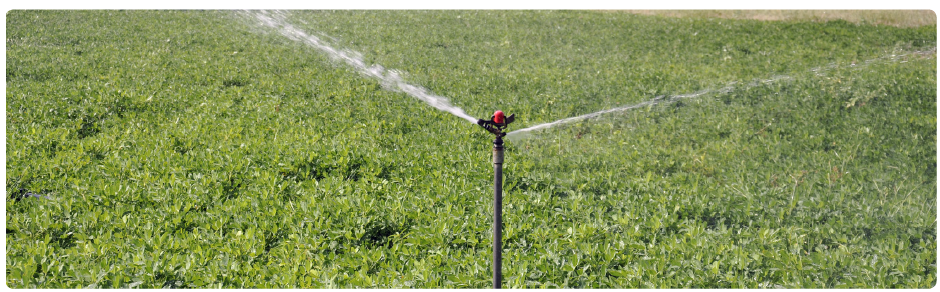

- Suitable for field crops like pulses, oil seeds, vegetables, sugarcane, cotton, cereals, tea, coffee and fodder crops.
- For efficient irrigation of field edges.
|
