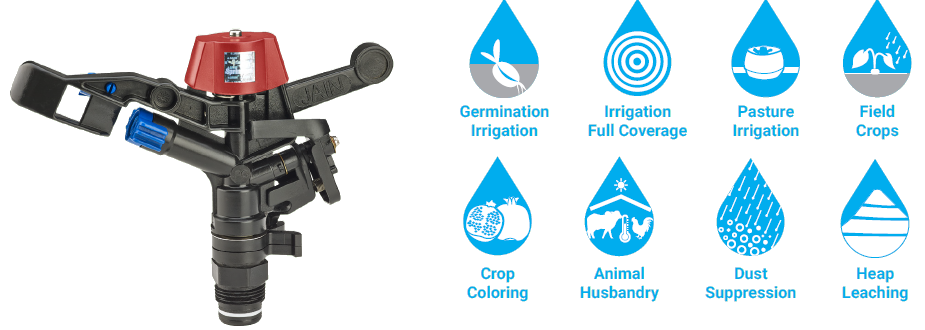

            | 5035 SD PC Sprinkler |
              |













		 Features and Specifications



            - Unique Hammer & SD Plate Unique hammer with SD (super-diffuser) plate design for uniform distribution

            - Finger Tip Adjustment User friendly, Stainless Steel fingertip adjustment to part circle mechanism

            - Innovative Bayonet Nozzles Integrated stream straightening vanes in nozzles for maximum throw

            - Red Cap for Protection of SS Spring Plastic protection cap protects the spring from sand gives longer life to sprinkler

            - Heavy Duty Retraction Spring Stainless steel retraction spring maintains uniform rotation speed

            - Stainless Steel Spindle, Fulcrum Pin Stainless steel spindle, fulcrum pin for improving life of sprinkler with anti self rotation arrangement

            - Discharge : 720 to 2100 lph

            - Diameter : 26 to 34 m

            - Operating Pressure : 2.5 to 5 Kg/cm²

            - Inlet Connection : 3/4” male Threaded

            - Usability : Quick Connect System

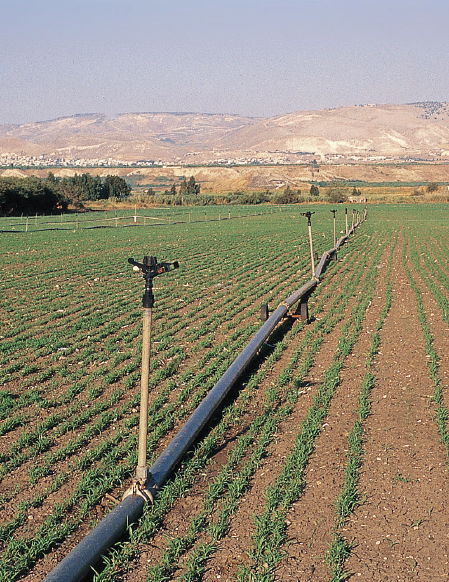

		 Applications



    	- Suitable for field crops like pulses, oil seeds, vegetables, sugarcane, cotton, cereals, tea, coffee and fodder crops.

    	- Used for irrigation of edges in various field crops










         |

      |


 |
