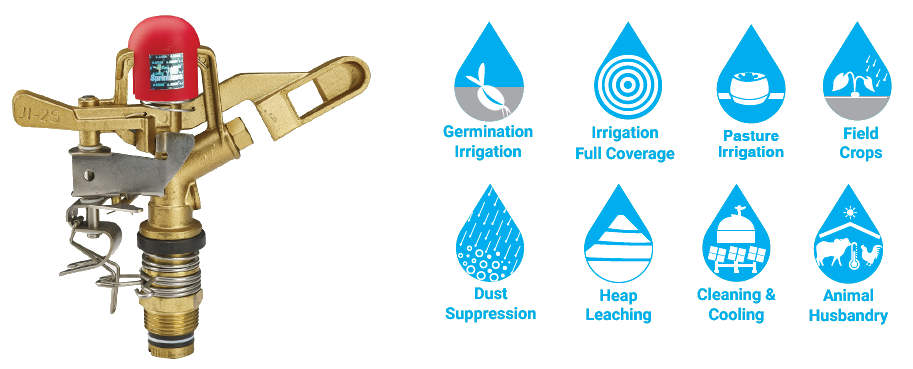

| JI - 2PC Sprinkler |
 |
Features and Specifications
- Finger-Tip Adjustment User friendly, Stainless Steel fingertip adjustment to part circle mechanism
- Innovative Swing Arm Well balanced swing arm ensures smooth and uniform rotation
- Hydrodynamically Designed Nozzles Brass nozzles with hydrodynamically designed inner profile for precise jet and longer radius of throw
- Heavy Duty Retraction Spring Stainless steel retraction spring maintains uniform rotation speed
- Stainless Steel Spindle, Fulcrum Pin Stainless steel spindle, fulcrum pin for improving life of sprinkler
- Equipped with Quality Washers Special washers used to give uniform & hassle free rotation along with leakage prevention
- Discharge: 22.2 to 31.9 lpm
- Wetted Radius: 14 to 15 m
- Operating Pressure: 2.5 to 4 Kg/cm²
- Inlet Connection: 3/4” male Threaded
- Usability: Quick Connect Assembly
Applications
- Suitable for field crops like pulses, oil seeds, vegetables,
sugarcane, cotton, cereals, tea, coffee and fodder crops.
|
|
|
